VacMotion Inc. Details Page - VacMotion product: FC 30 - Metal housing vacuum filter G1 thread with 5-7 micron pleated paper cartridge

Language:

items in cart: 0

Home > Products > Vacuum Filters > FC 30

Product DetailsDimensional DrawingParts & Accessories

Quantity:

Item:FC 30 - Metal housing vacuum filter G1 thread with 5-7 mi... (Full Description below)

Item#:FC 30
Price: $170.12 (USD) ea.

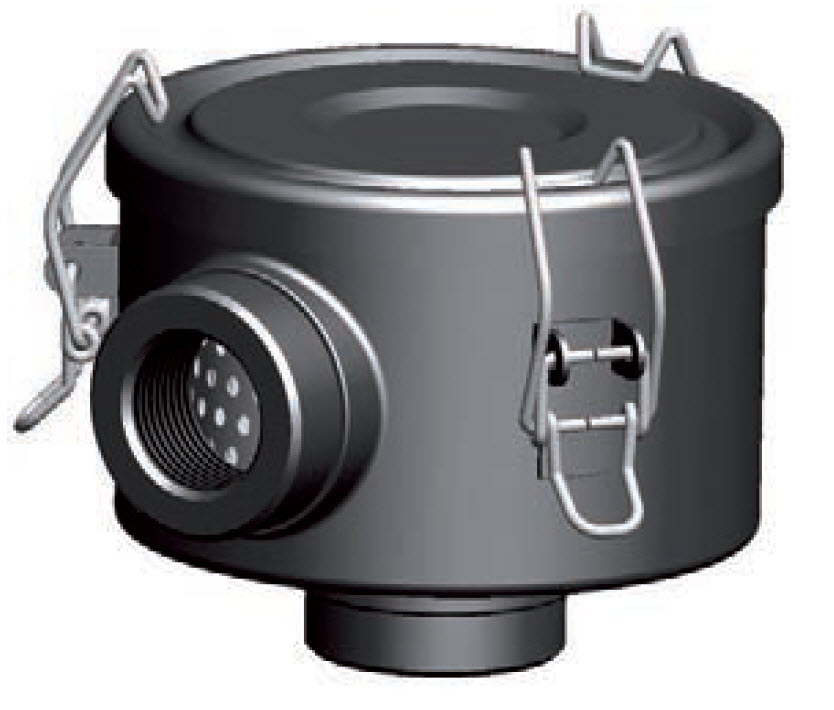

Metal housing vacuum filter G1 thread with 5-7 micron pleated paper cartridge

General Specifications

Filter Type:Metal housing
Thread Size:G1" female
Filter Area In2:N/A
Filter Area In2:53.0
Weight(lbs):2.58

Additional Information

No additional information

CAD files for this Product

N/A

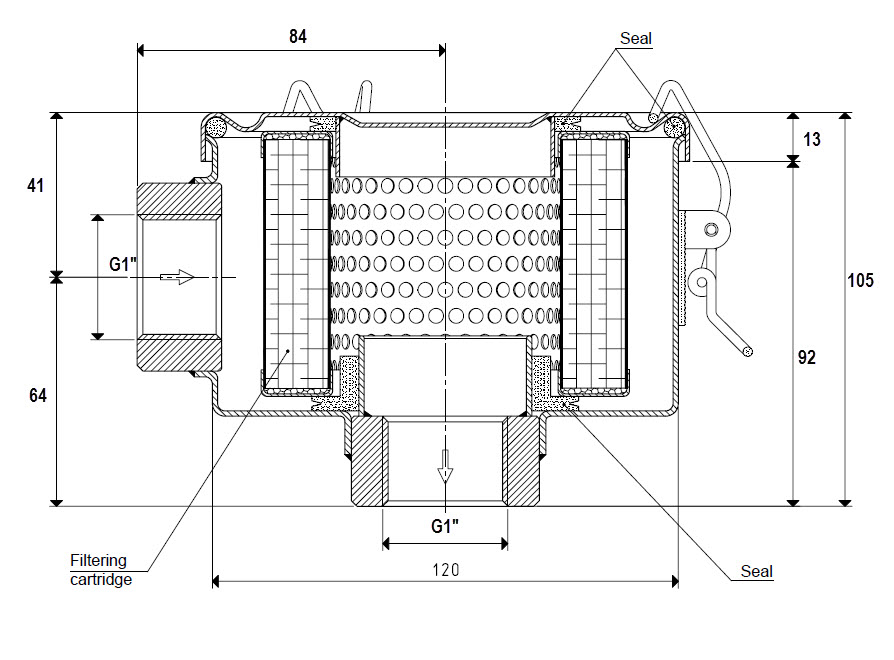

Dimensional drawing for Item:FC 30

Click on the image to enlarge

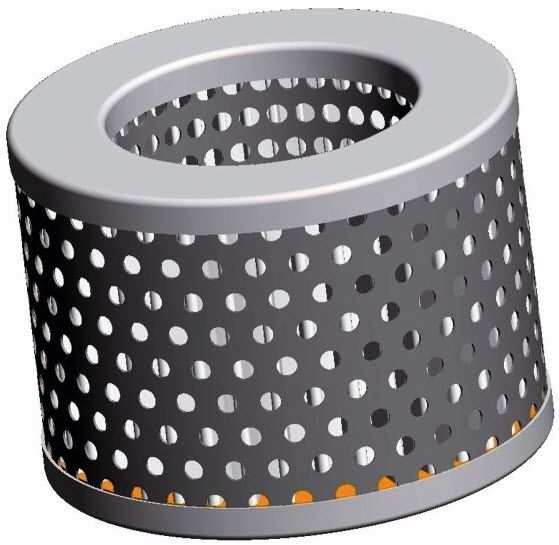

Item#:00 FC 15 Paper filtering cartridge for FC 30, FC 35 and FC 38 vacuum filters. 5-7 microns

Compatible with Inline Filter model: FC 30

General Specifications

Product:Filter Elements
Material:Pleated Paper
Dimensions:
Weight lbs.(g): 0.025
Price: $48.71 (USD) each

Add to Cart

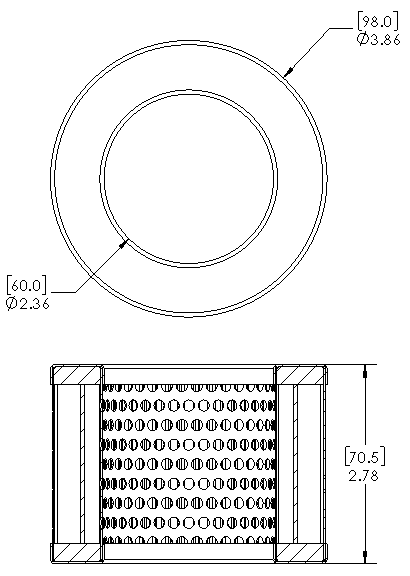

Dimensional Drawing for 00 FC 15
