Home > Products > Vacuum Filters > FC 25

Product DetailsDimensional DrawingParts & Accessories

Quantity:

Item:FC 25 - Metal housing vacuum filter G3/4 thread with 5-7 ... (Full Description below)

Item#:FC 25
Price: $145.15 (USD) ea.

Metal housing vacuum filter G3/4 thread with 5-7 micron pleated paper cartridge

General Specifications

Filter Type:Metal housing
Thread Size:G3/4" female
Filter Area In2:N/A
Filter Area In2:29.4
Weight(lbs):1.62

Additional Information

No additional information

CAD files for this Product

N/A

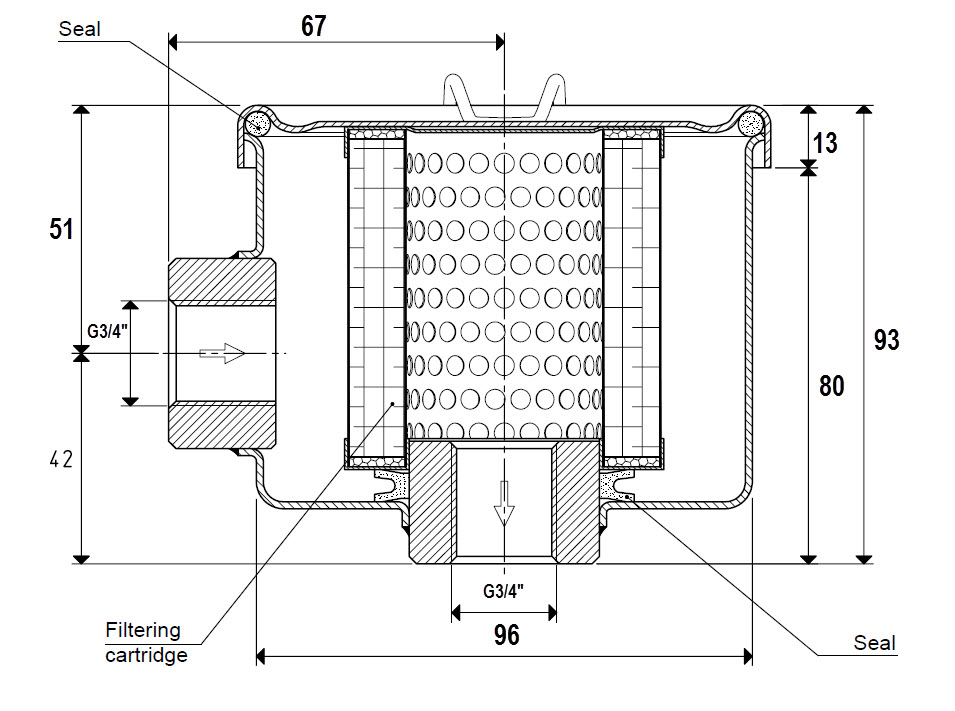

Dimensional drawing for Item:FC 25

Click on the image to enlarge

Item#:00 FC 08 Paper filtering cartridge for FC 20 and FC 25 vacuum filters. 5-7 microns

Compatible with Inline Filter model: FC 25

General Specifications

Product:Filter Elements
Material:Pleated Paper
Dimensions:
Weight lbs.(g): 0.25
Price: $40.81 (USD) each

Add to Cart

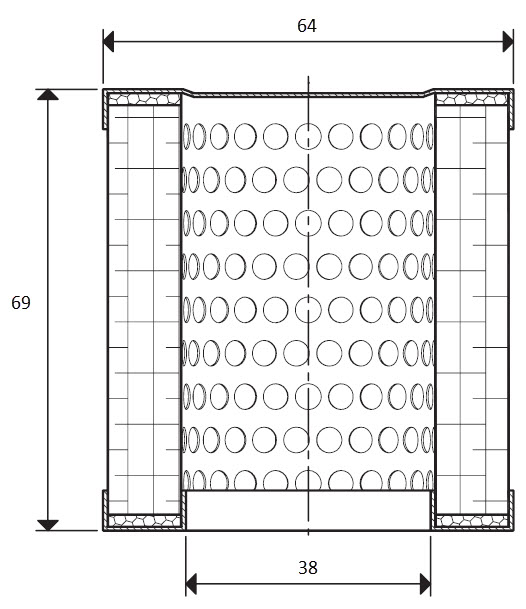

Dimensional Drawing for 00 FC 08
