Home > Products > Vacuum Filters > FC 10

Product DetailsDimensional DrawingParts & Accessories

Quantity:

Item:FC 10 - Metal housing vacuum filter G3/8 thread with 5-7 ... (Full Description below)

Item#:FC 10
Price: $118.95 (USD) ea.

Metal housing vacuum filter G3/8 thread with 5-7 micron pleated paper cartridge

General Specifications

Filter Type:Metal housing
Thread Size:G3/8" female
Filter Area In2:N/A
Filter Area In2:8.8
Weight(lbs):0.776

Additional Information

No additional information

CAD files for this Product

N/A

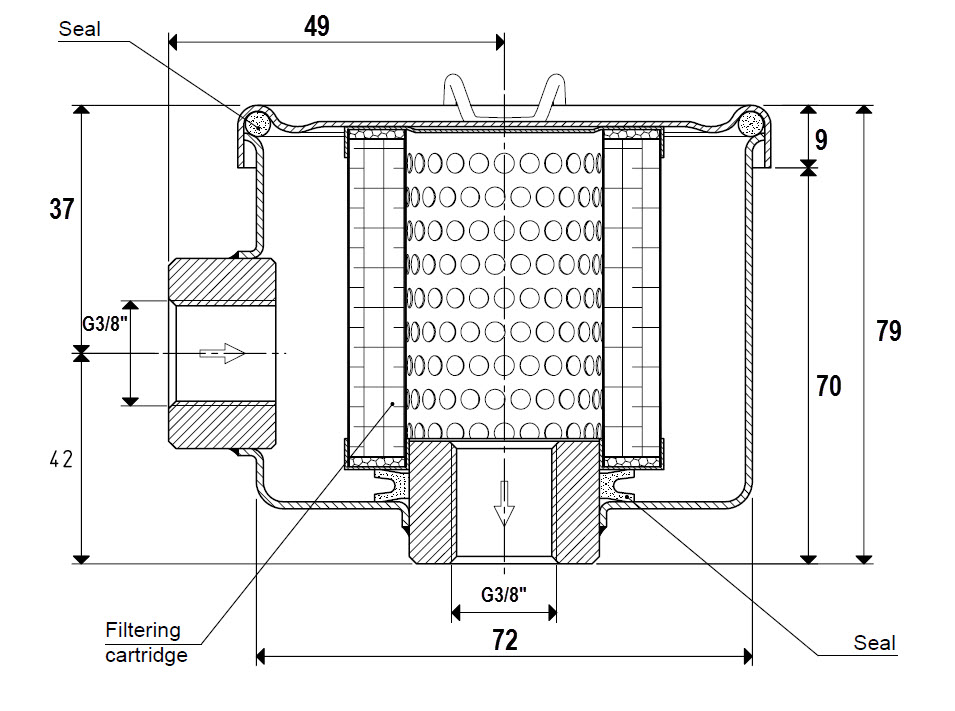

Dimensional drawing for Item:FC 10

Click on the image to enlarge

Item#:00 FC 04 Paper filtering cartridge for FC 10 vacuum filter. 5-7 microns

Compatible with Inline Filter model: FC 10

General Specifications

Product:Filter Elements
Material:Pleated Paper
Dimensions:
Weight lbs.(g): 0.25
Price: $34.01 (USD) each

Add to Cart

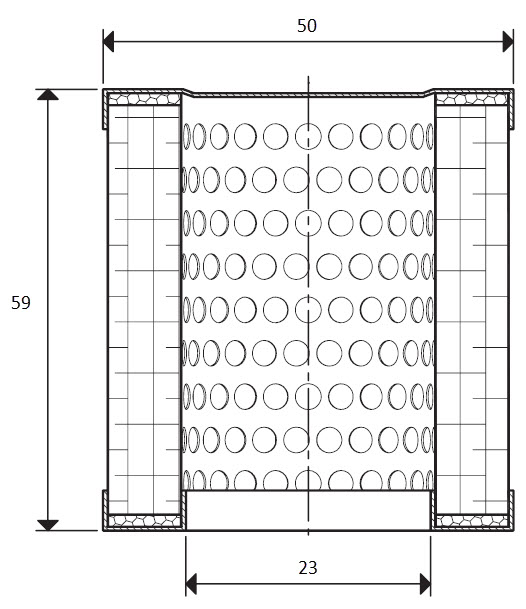

Dimensional Drawing for 00 FC 04
