Item:PSB5-SIR - 5.4mm single bellows Silicone suction cup
| |
Item#:PSB5-SIR
Price:$5.20 (USD) ea.
|
5.4mm single bellows Silicone suction cup
General Specifications
Style:Bellows
Cleats:No
Material:Silicone
Thread Size:None
Bellows: 1.5
Outside Diameter:5.4mm
Weight(lbs):0.00044
Color:Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB5-SIR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.04 lbs. |
0.02 lbs. |
| 18"Hg |
0.12 lbs. |
0.06 lbs. |
| 27"Hg |
0.19 lbs. |
0.09 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for:B5.20, VSAB5SI, 3150286S, 23.005.178.2, XP-B5S, GSV B5 20, 1413, VB5-S, 210.005.045.02R, VSAB5SIR, VP.3150286S |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action  No Videos Available for: PSB5-SIR No CAD files available for this Product

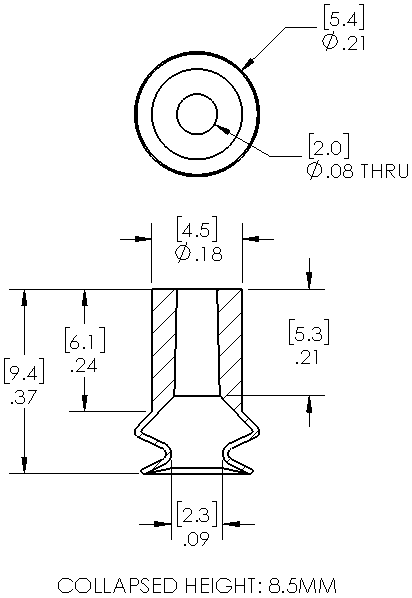

Dimensional drawing for Item:PSB5-SIR
Click on the image to enlarge
Parts and accessories for Item:PSB5-SIR
Fitting Image for 400.006 |
General Specifications
Material:Aluminum
Weight: .0010(lbs)
Dimensions:M5 male
Price: $2.21 (USD) each
Description: M5 Male Barb Fitting
Add to Cart
|
Dimensional Fitting Drawing for 400.006 |
|
|---|
|
|
|
