Home > Products > Level Compensators > LC12-H2-30

Product DetailsDimensional DrawingParts & Accessories

Quantity:

Item:LC12-H2-30 - Small suspension. M12 mount. 30mm stroke

Item#:LC12-H2-30
Price: $9.92 (USD) ea.

Small suspension. M12 mount. 30mm stroke

General Specifications

Suction Cup Connection size:M5 female
Vacuum Connection Size:Hose barb
Size Stroke:30
Anti Rotation:No
Internal/External Spring:External
Product Weight(lbs):.1055

Additional Information

No additional information available for this item

CAD files for this Product

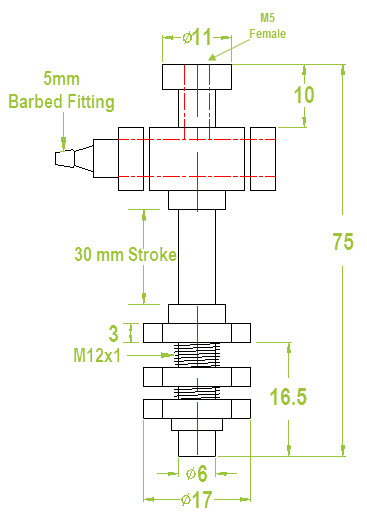

Dimensional drawing for Item:LC12-H2-30

Click on the image to enlarge

Suggested Parts and Accessories for Item:LC12-H2-30

Items: Bellows Suction Cups

General Specifications

Bellows vacuum suction cups handle objects with height differences and varying shape while supplying a lifting movement for separating thin materials.

Materials: NBR, Silicone,Natural Rubber, Vinyl or Polyurethane

See all Bellows Cups

Sample Dimensional Drawing for Bellows Style Suction Cup

Items: Flat Suction Cups

General Specifications

Flat vacuum cups are typically designed to handle flat or slightly curved surfaces. Available with or without cleats.

Materials: NBR, Silicone or Polyurethane

See all Flat Cups

Sample Dimensional Drawing for Flat Style Suction Cup

Items: Oval Suction Cups

General Specifications

Oval vacuum cups are ideal for handling narrow work pieces. Available in flat or bellows styles.

Materials: NBR, Silicone or BENZ

See all Oval Cups

Sample Dimensional Drawing for Oval Style Suction Cup
